Cockpit Right Side

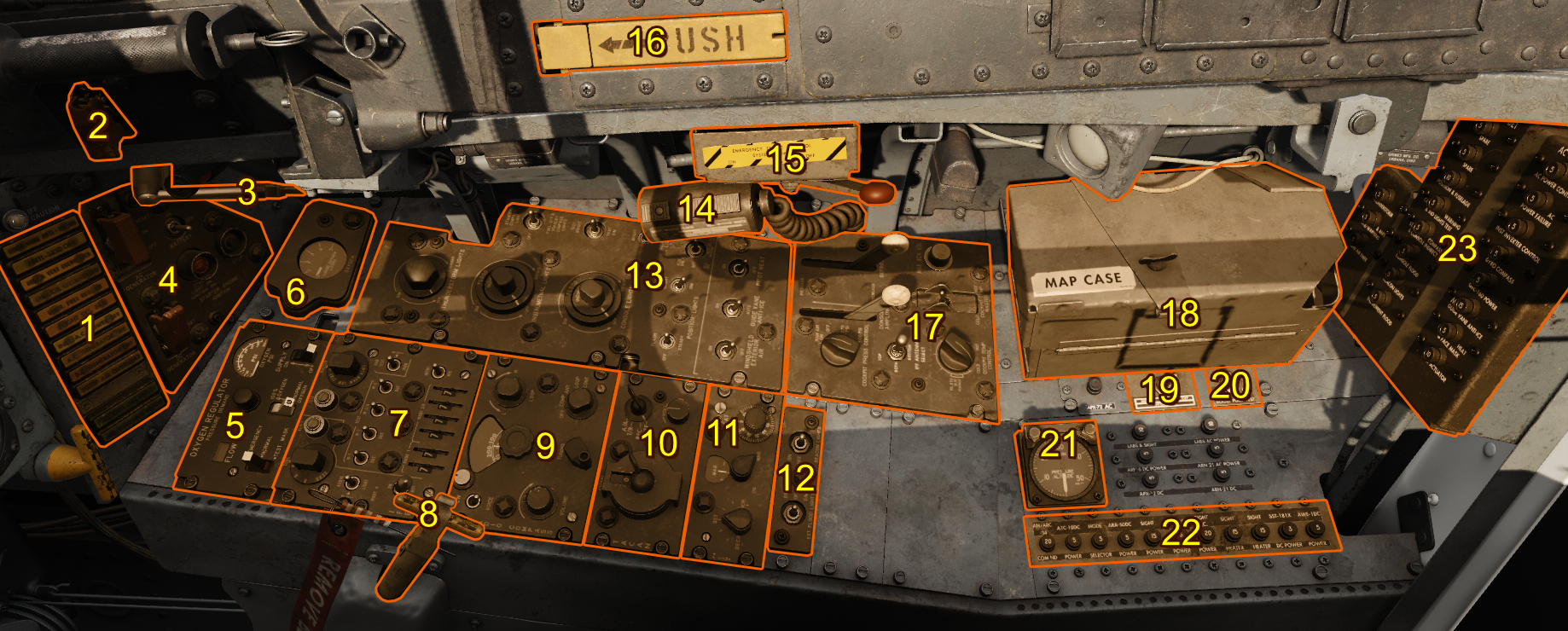

This section covers items on the right side of the cockpit. Specifics are covered in other sections about a given panel's related systems.

replace image

  1. Indicator and Caution Light Panel
  2. Standby Instrument Inverter Switch
  3. Navigation Computer
  4. Electrical Control Panel
  5. Oxygen Regulator Control Panel
  6. Liquid Oxygen Quantity Gauge
  7. IFF/SIF Control Panel
  8. Canopy Alternate Emergency Jettison Handle
  9. Radio Compass Control Panel
  10. Tacan Control Panel
  11. J-4 Compass Control Panel
  12. Exterior Floodlight Anti-collision Light Panel
  13. Lighting Control Panel
  14. Cockpit Utility Light
  15. Flight Control Emergency Hydraulic Pump Lever
  16. Canopy Internal Manual Emergency Release Handle
  17. Air Conditioning Control Panel
  18. Map Case
  19. Interphone Switch
  20. DC Fuel Boost Pump Test Switch
  21. Cockpit Pressure Altitude Indicator
  22. Circuit Breaker Panel
  23. Circuit Breaker Panel

Canopy Alternate Emergency Jettison Handle

The Canopy Alternate Emergency Jettison Handle is a T-shaped handle that jettisons the canopy without arming the seat catapult. The spring clip over the top must be released before the handle can be pulled.

Canopy Internal Manual Emergency Release Handle

The Canopy Internal Manual Emergency Release Handle unlocks and open the canopy manually when the aircraft is on the ground.

Cockpit Utility Light

The Cockpit Utility Light can be used in the event of an electrical failure at night.

Map Case

The Map Case stores maps, charts, and literature used in flight.

Interphone Switch

This spring-loaded switch allows direct communication to the ground crew and chief during preflight or postflight operations.
